Hanmatek Professional Digital Oscilloscope with 2 Channels & 7" Screen, TFT-LCD Display with 110mhz Bandwidth 1GS/s Sampling Rate - Imported from UK
Important Update for All Customers!
✓ Call for Current Price Before Order.
آرڈر دینے سے پہلے موجودہ قیمت معلوم کرنے کے لیے فون کریں
✓ COD {Cash on Delivery} You Must Have to Pay 50% Advance Payment of Your Order, If You Are UNWilling To Pay 50% Advance Your Order will be Canceled.
کیش آن ڈیلیوری کے تحت آپ کو اپنے آرڈر کی 50 فیصد پیشگی ادائیگی کرنی ہوگی؛ اگر آپ 50 فیصد پیشگی ادائیگی کرنے کے لیے تیار نہیں ہیں تو آپ کا آرڈر منسوخ کر دیا جائے گا۔
✓ {Cash on Delivery} All Courier Companies Additional Charge 4% COD Tax. {Mandated by the Federal Board of Revenue FBR}
کیش آن ڈیلیوری تمام کوریئر کمپنیاں 4 فیصد ٹیکس اضافی چارج وصول کرتی ہیں۔ یہ فیڈرل بورڈ آف ریونیوکی جانب سے لازمی قرار دیا گیا ہے
آرڈر دینے سے پہلے موجودہ قیمت معلوم کرنے کے لیے فون کریں
✓ COD {Cash on Delivery} You Must Have to Pay 50% Advance Payment of Your Order, If You Are UNWilling To Pay 50% Advance Your Order will be Canceled.
کیش آن ڈیلیوری کے تحت آپ کو اپنے آرڈر کی 50 فیصد پیشگی ادائیگی کرنی ہوگی؛ اگر آپ 50 فیصد پیشگی ادائیگی کرنے کے لیے تیار نہیں ہیں تو آپ کا آرڈر منسوخ کر دیا جائے گا۔
✓ {Cash on Delivery} All Courier Companies Additional Charge 4% COD Tax. {Mandated by the Federal Board of Revenue FBR}
کیش آن ڈیلیوری تمام کوریئر کمپنیاں 4 فیصد ٹیکس اضافی چارج وصول کرتی ہیں۔ یہ فیڈرل بورڈ آف ریونیوکی جانب سے لازمی قرار دیا گیا ہے
Rs.85,990
Rs.100,497

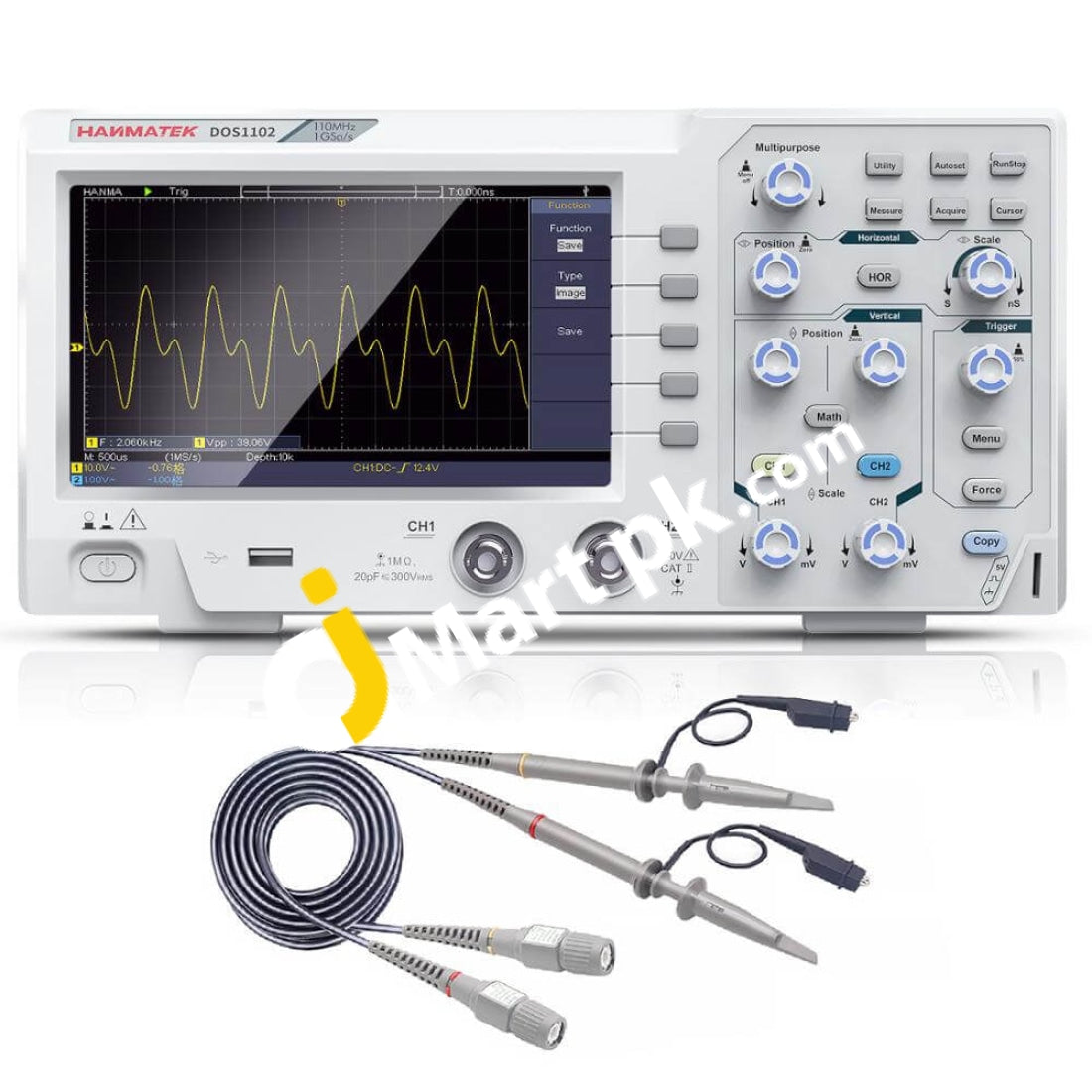

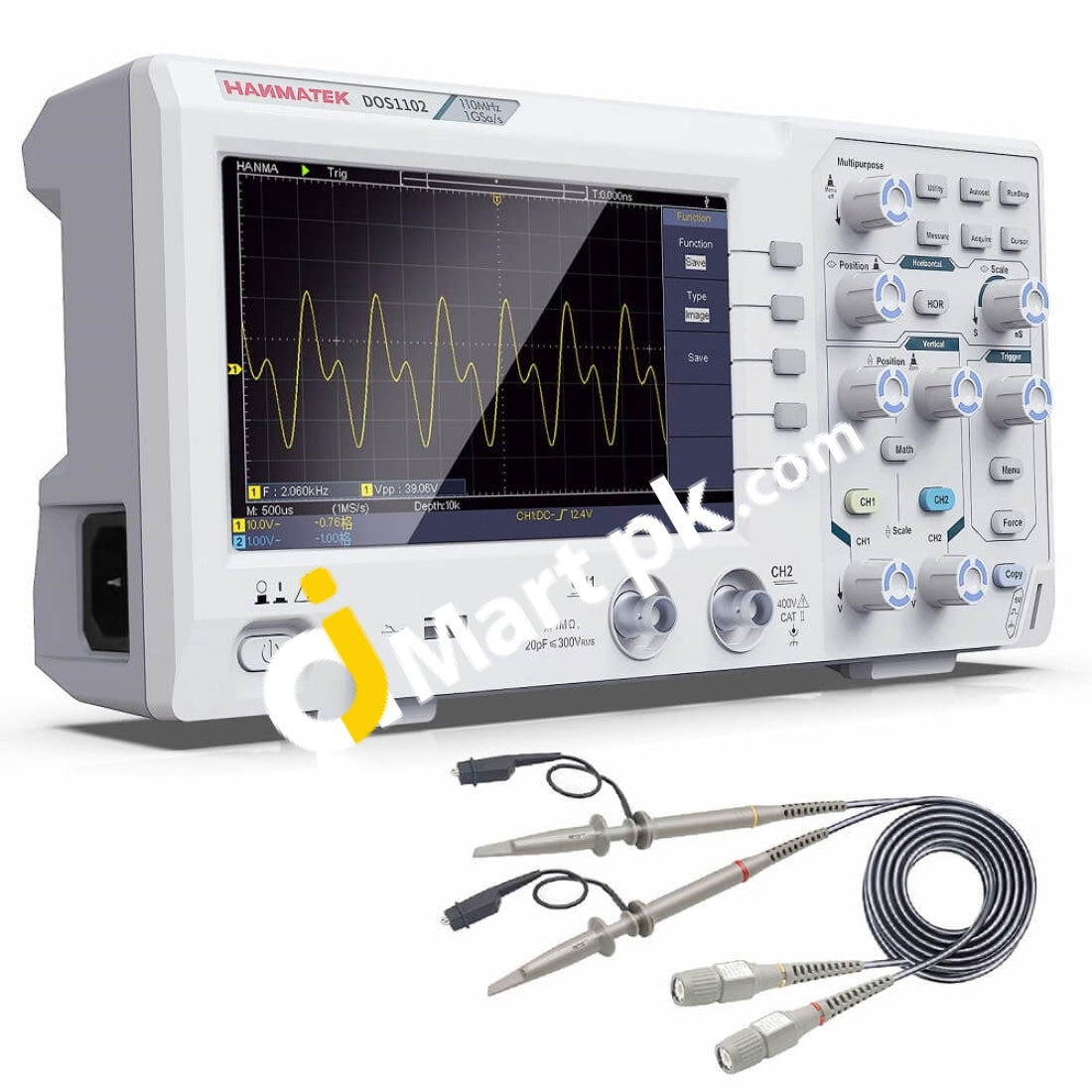

BRAND: HANMATEK MODEL NO: DOS1102 The Hanmatek DOS1102 is a great digital storage oscilloscope for those looking diagnose and measure a wide range of signals and devices, ideal for fault finding and diagnosis work. The integrated LCD screen clearly shows your measurements, or connect via USB to your PC for...
customers are viewing this product
- BRAND: HANMATEK
- MODEL NO: DOS1102
-
The Hanmatek DOS1102 is a great digital storage oscilloscope for those looking diagnose and measure a wide range of signals and devices, ideal for fault finding and diagnosis work. The integrated LCD screen clearly shows your measurements, or connect via USB to your PC for recording large screen viewing of your data collection.
-

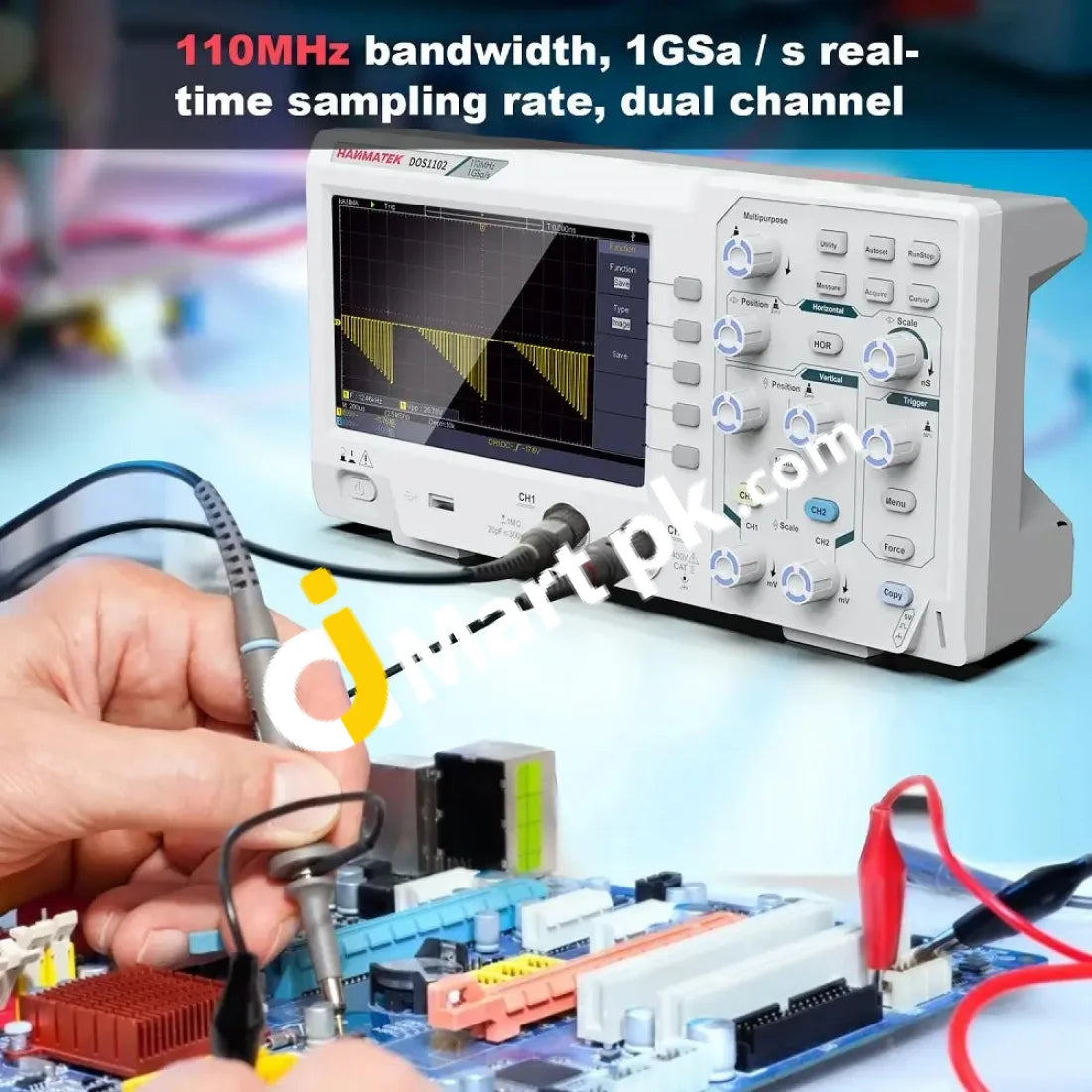

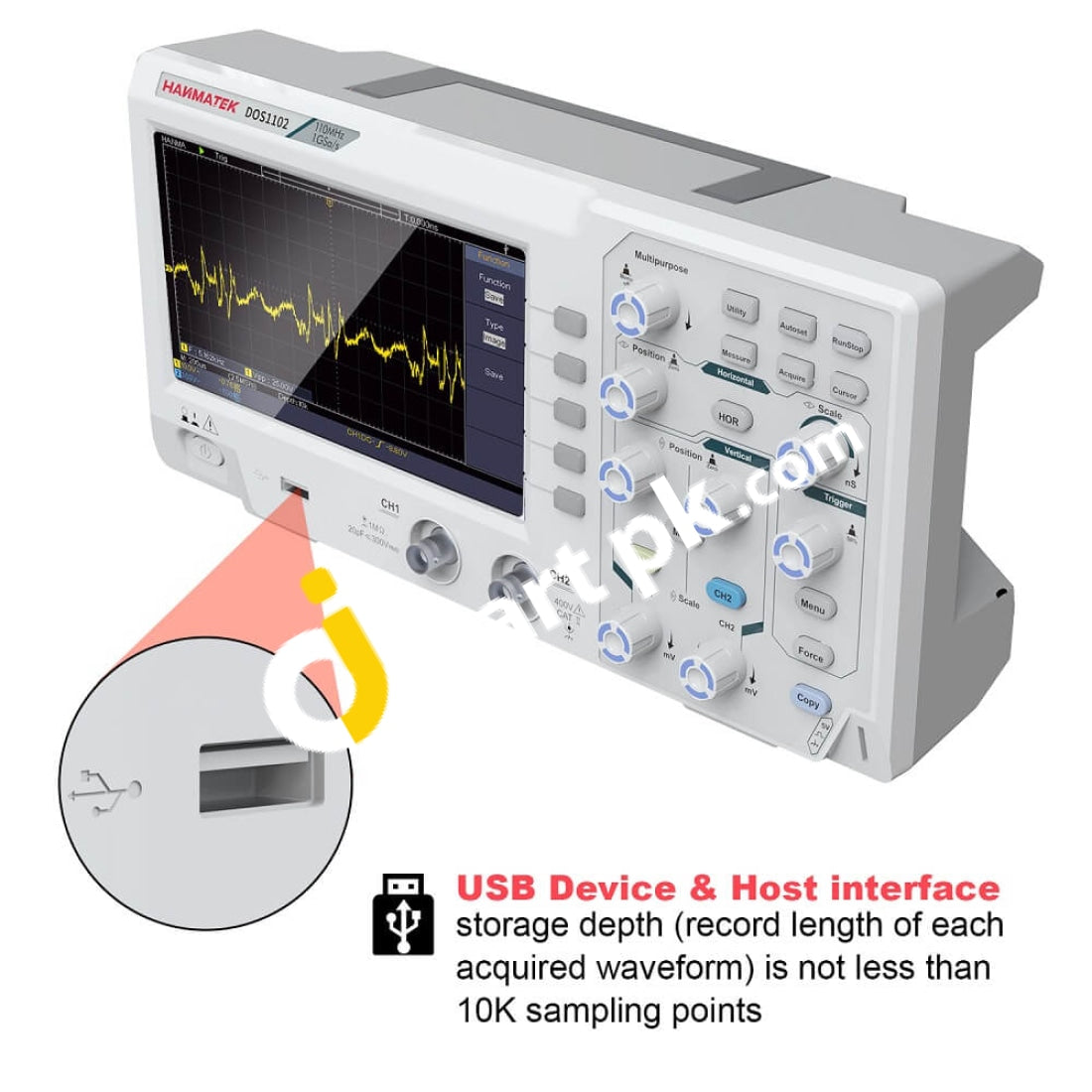

110MHz bandwidth, 1GSa / s real-time sampling rate, dual channel, 2ns / div ～ 1000s / div time base range; storage depth (record length of each acquired waveform) is not less than 10K sampling points; stored waveform is not less 16 groups; with U disk storage function; USB Device & Host interface.
-

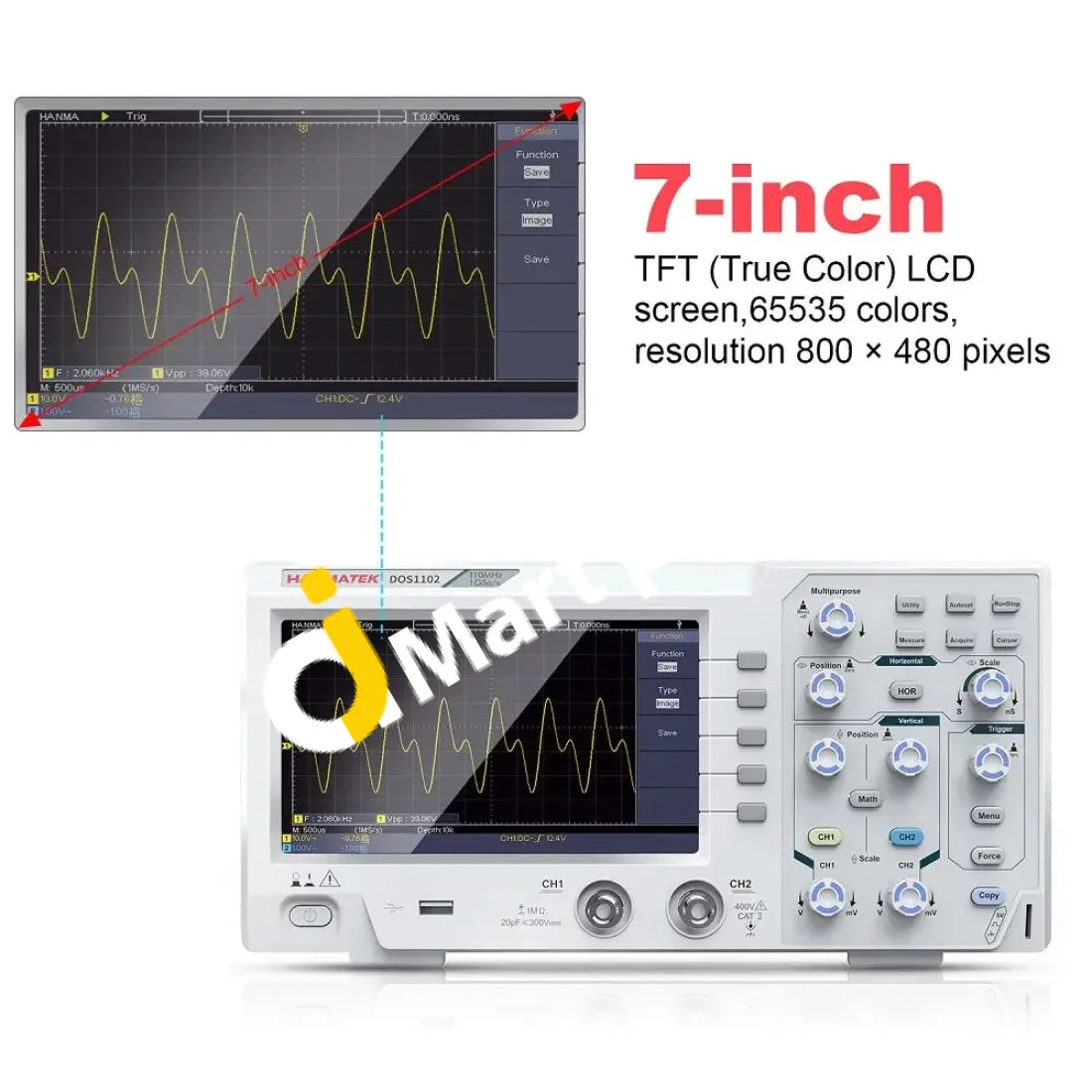

7 inch 800*480 LCD screen.
-
Support cursor measurement, cursor mode is not less than voltage difference (△ V), time difference (△ T), time difference & voltage difference ( △ V), four modes of automatic cursor
-
With automatic range function, support horizontal, vertical, single waveform / multi-waveform tracking; probe attenuation multiples of 1X, 10X, 100X, 1000X, four kinds
-
Built-in 6-bit hardware frequency meter, which can measure 2Hz ~ 20MHz; with current measurement function, measurement range: 100.0mA / V ~ 1KA / V
-
30 kinds of automatic measurement functions.
-

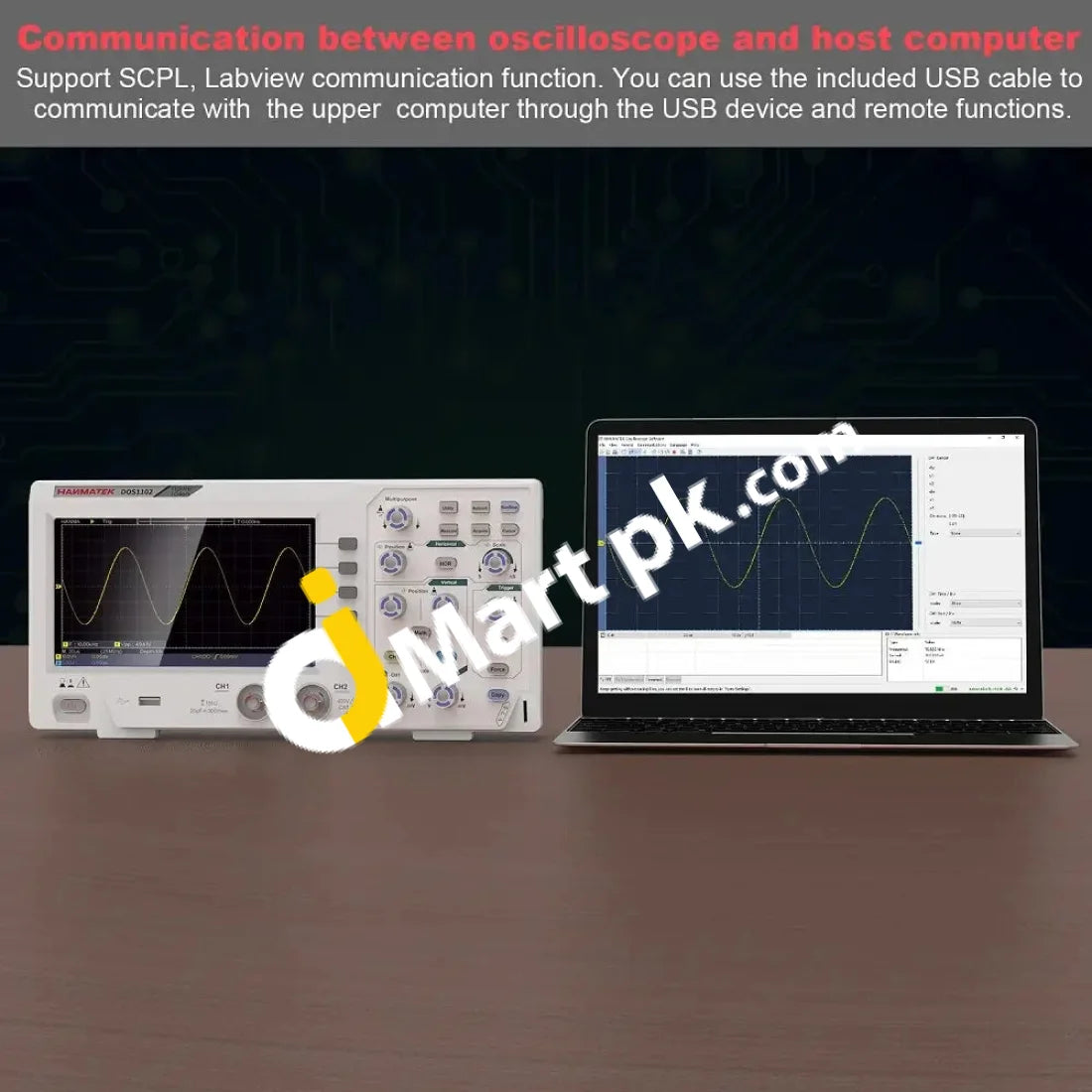

Support LABVIEW communication, support secondary development.
-

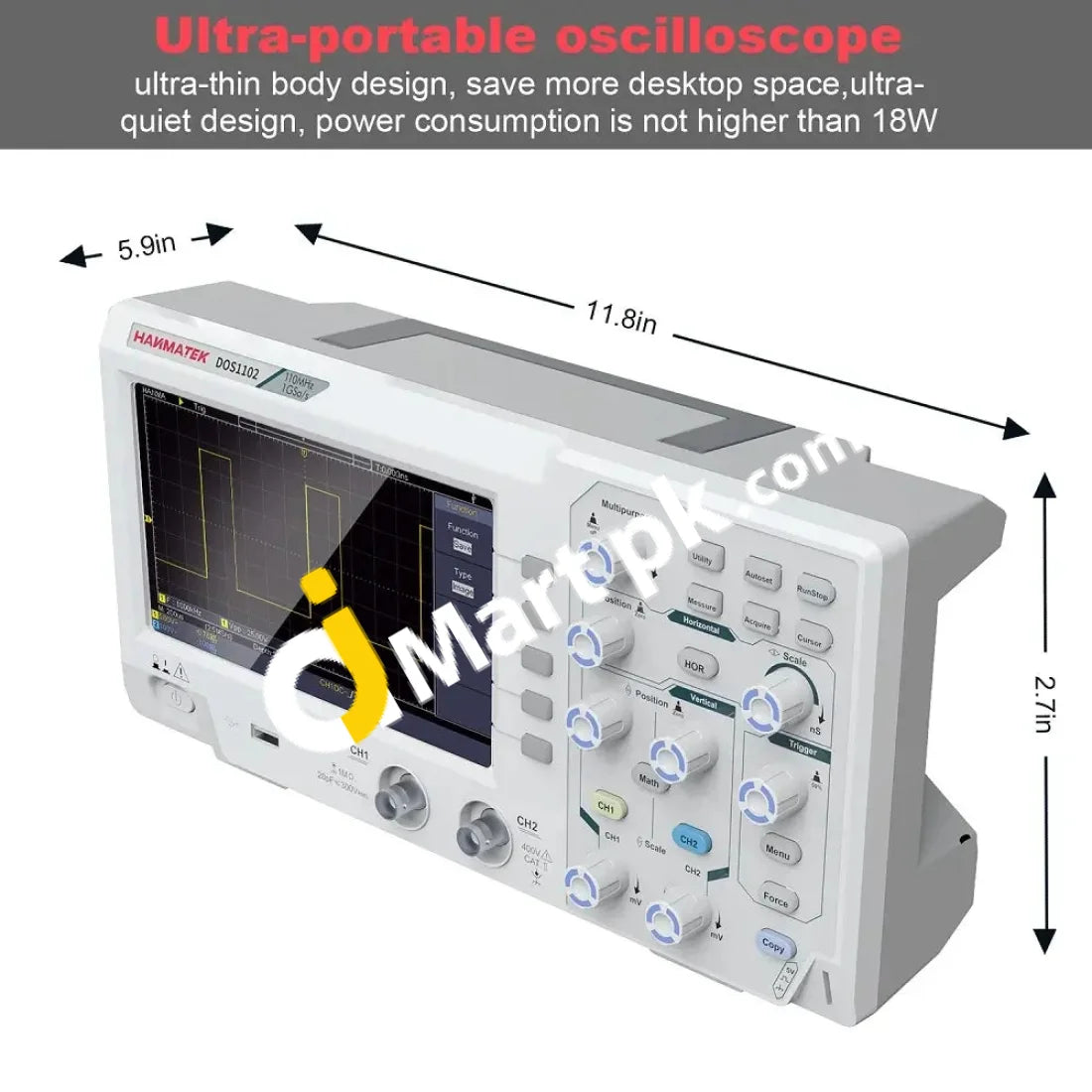

Ultra-portable oscilloscope, saving desktop space, ultra-quiet design, power consumption not higher than 18W.
-
NOTE: Not For Medical Use
